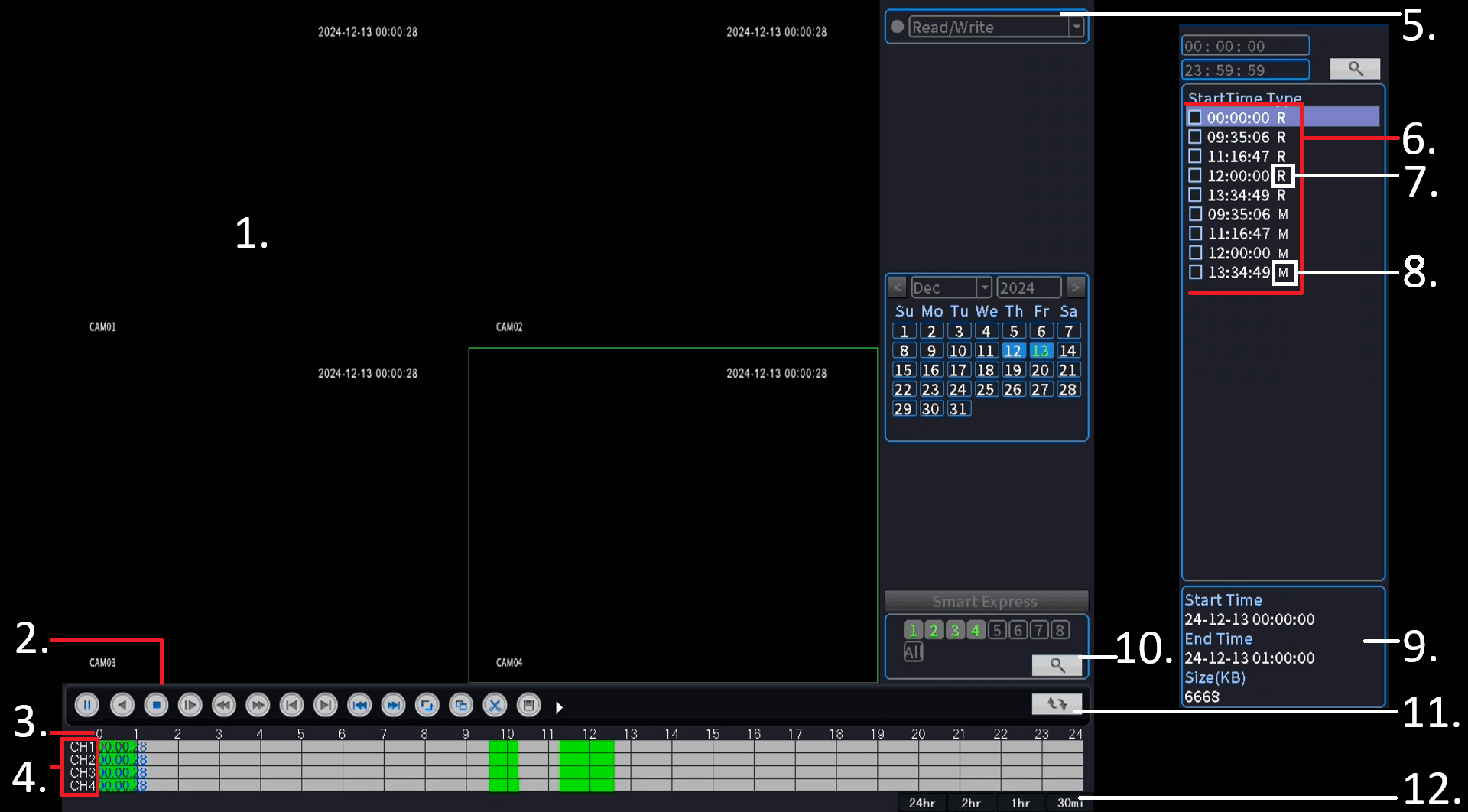

1. Area for Video Playing

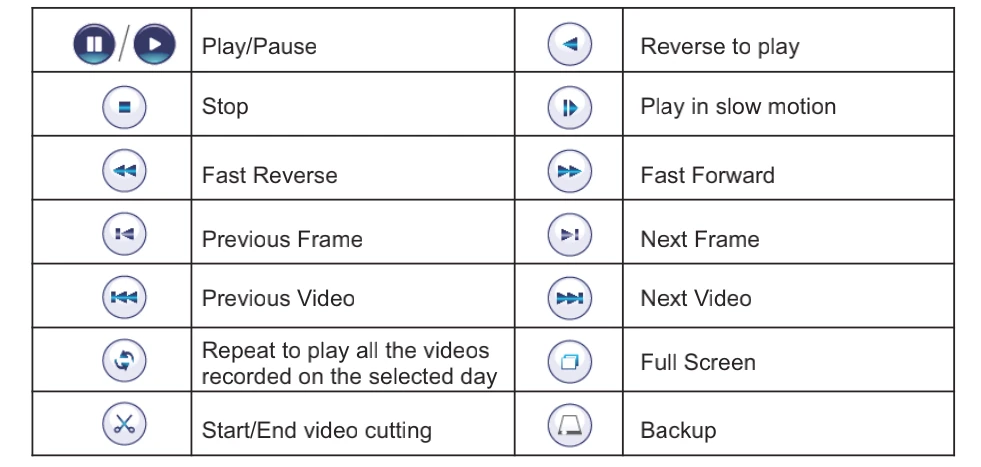

2. Playback Buttons
3. Timeline
4. Channel
5. Filters
6. Filtered Videos List
7. R: Standard Videos
8. M: Videos recorded when the camera detects motion or human shape.
9. Detailed Info. of the Selected Video
10. Search
11. Show/Hide Filtered Videos List
12.Timeline by Hour/Minute
Requirements
- Ensure Hard Drive is installed

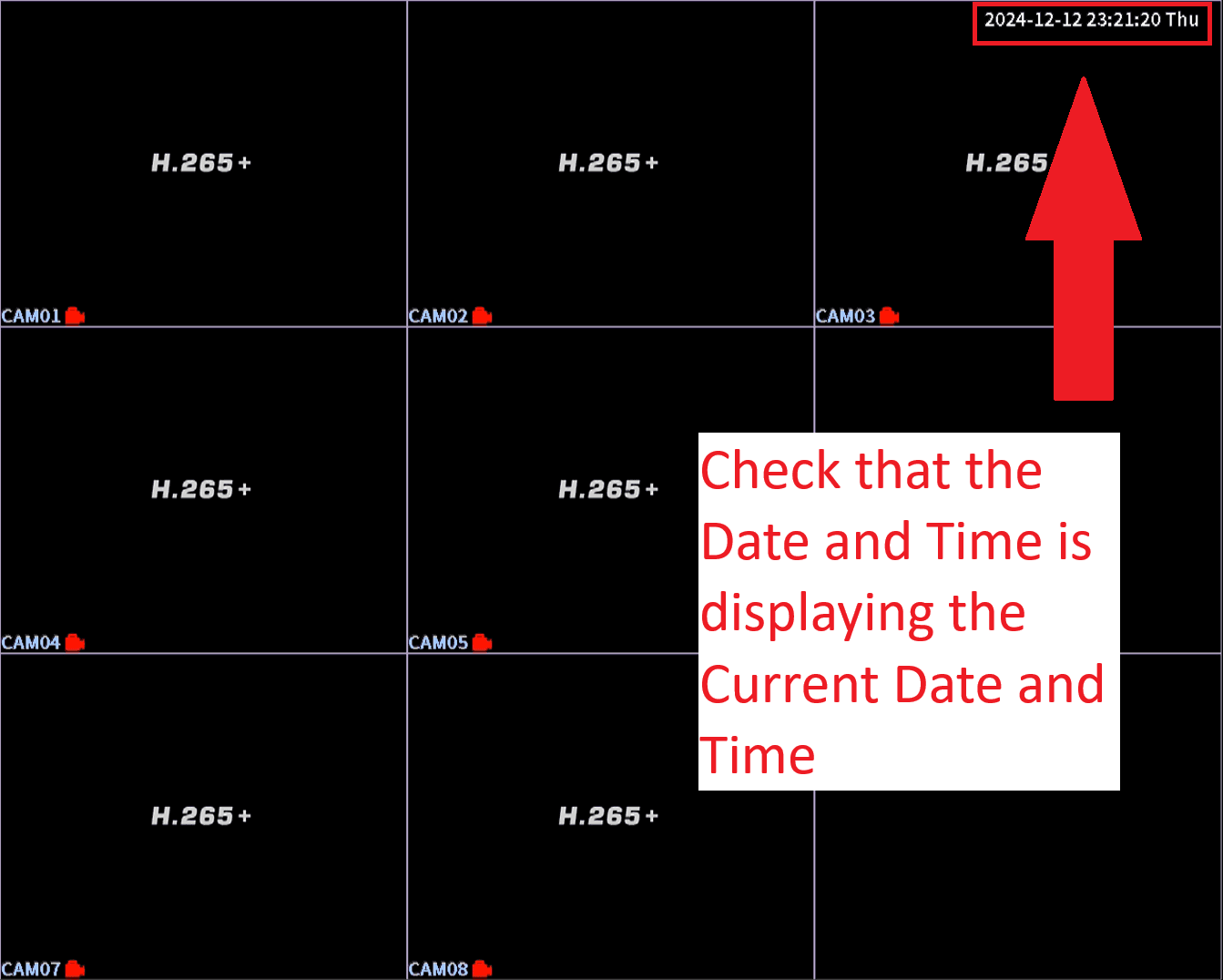

- Check that the Date and Time is showing the current Date and Time
- Important! If the date and time are incorrect, the playback will not work properly because recordings will be saved with the wrong date and time.

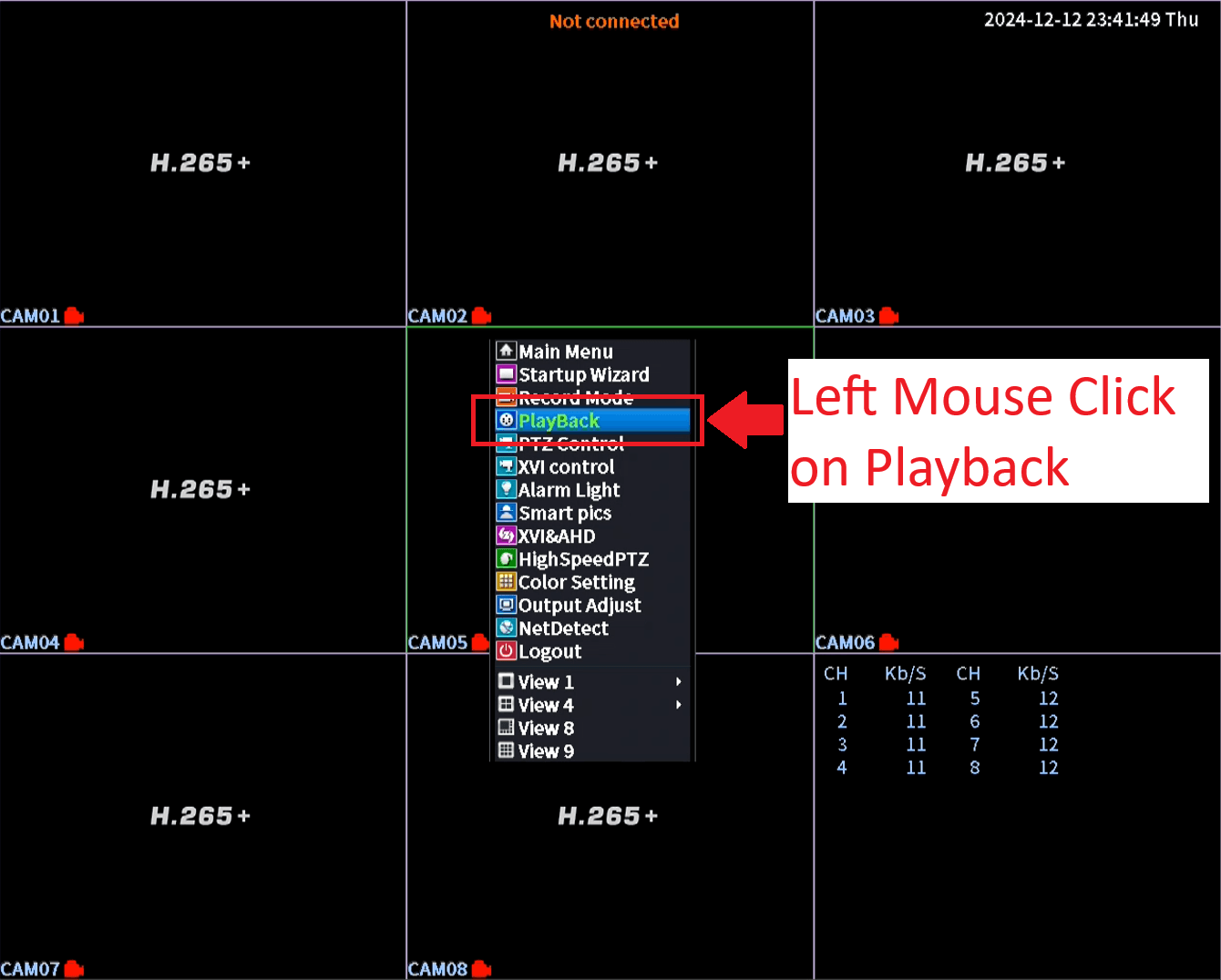

Open Menu – Select Playback
- Right Monuse Click anywhere on the screen to Open Menu
- Left Mouse Click on Playback

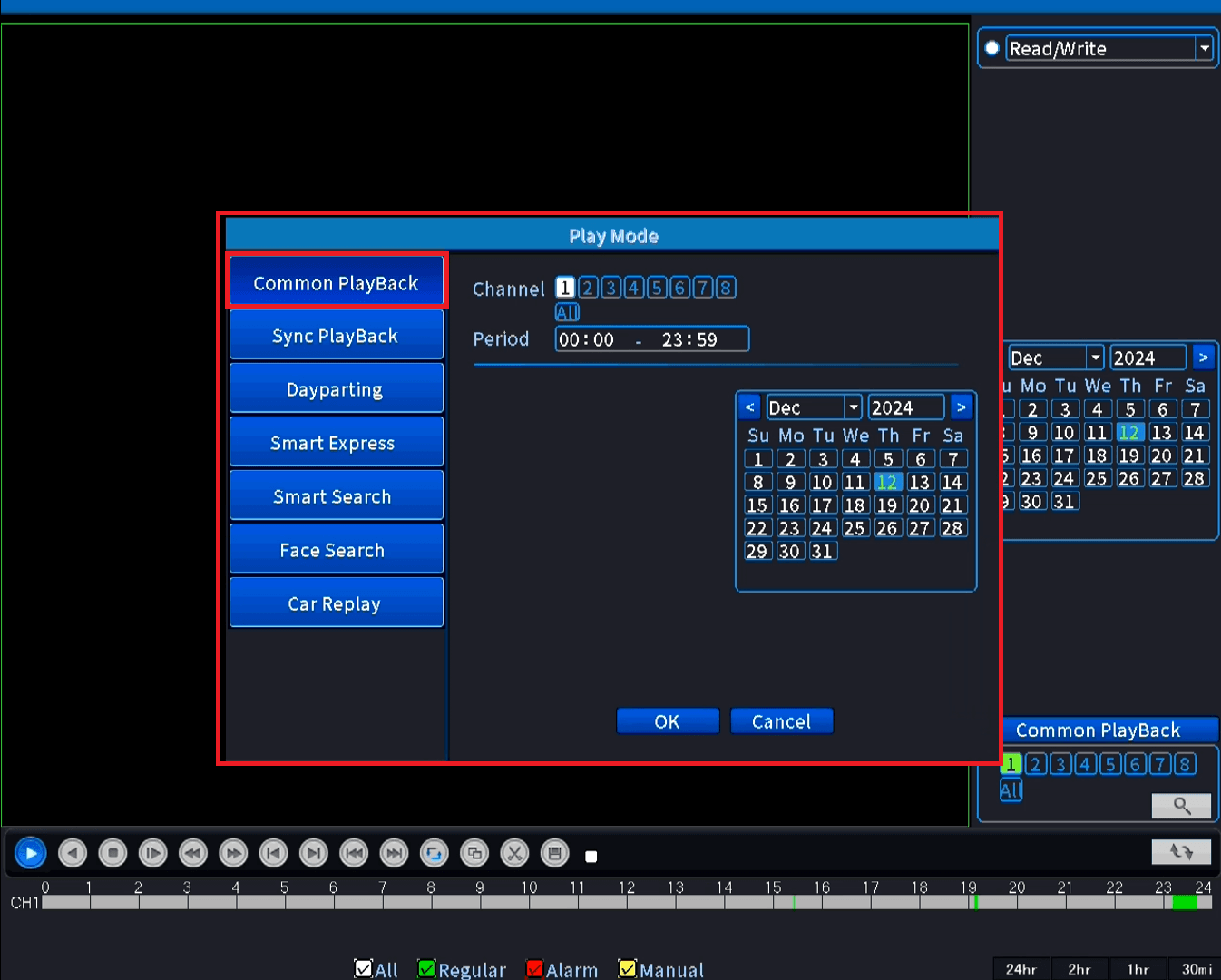

Common Playback
- By Default Common Playback is Selected
- If unsure, Left Mouse Click on Common Playback

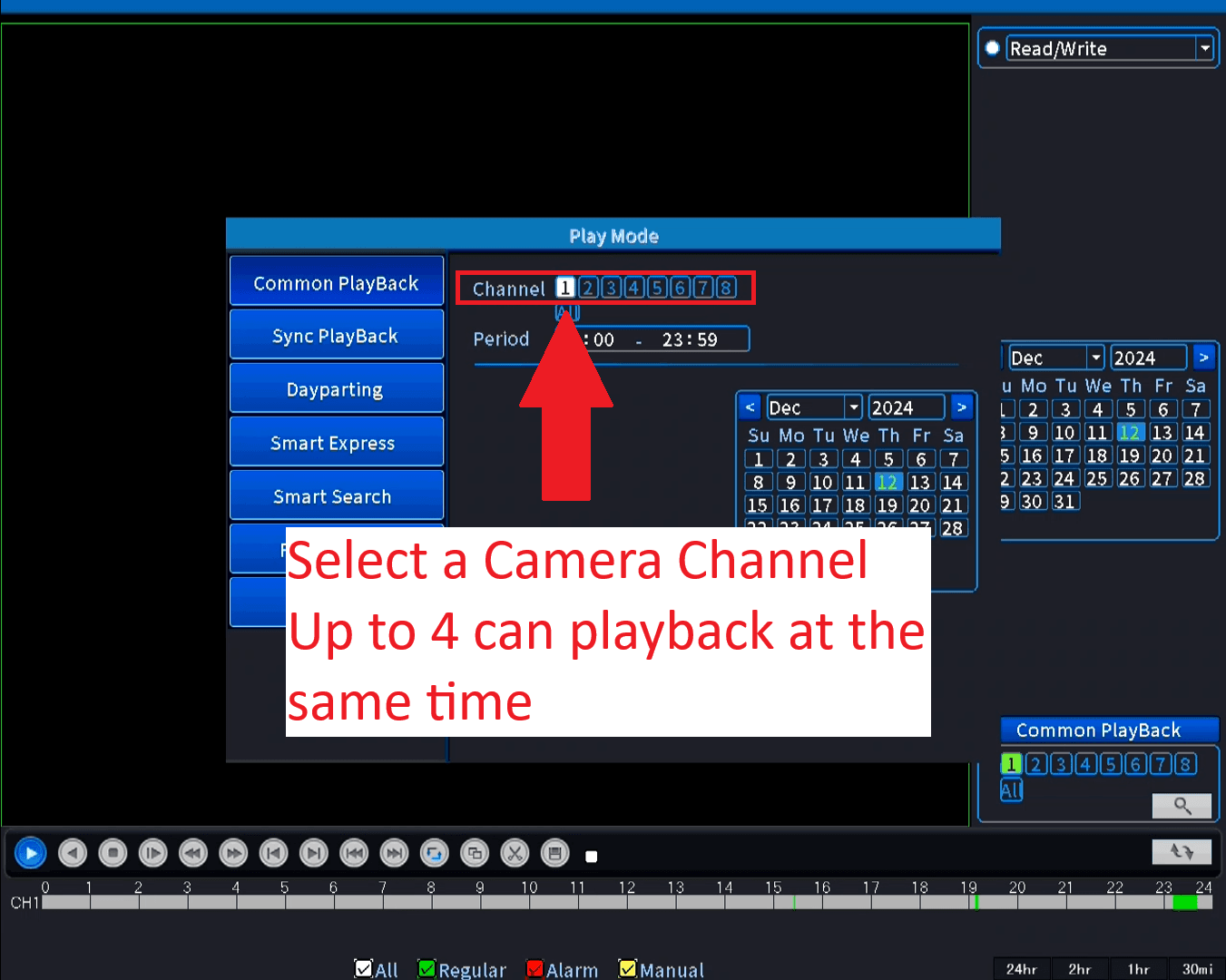

Select a Camera to Playback
- Choose the camera channel you want to watch.
- Left Mouse Click on the Channel Numbers to Highlight, HIghlight indicates it has been selected
- Left Mouse Click on a Highlight Channel to deselect it
Note:
You can play back up to 4 cameras at the same time.

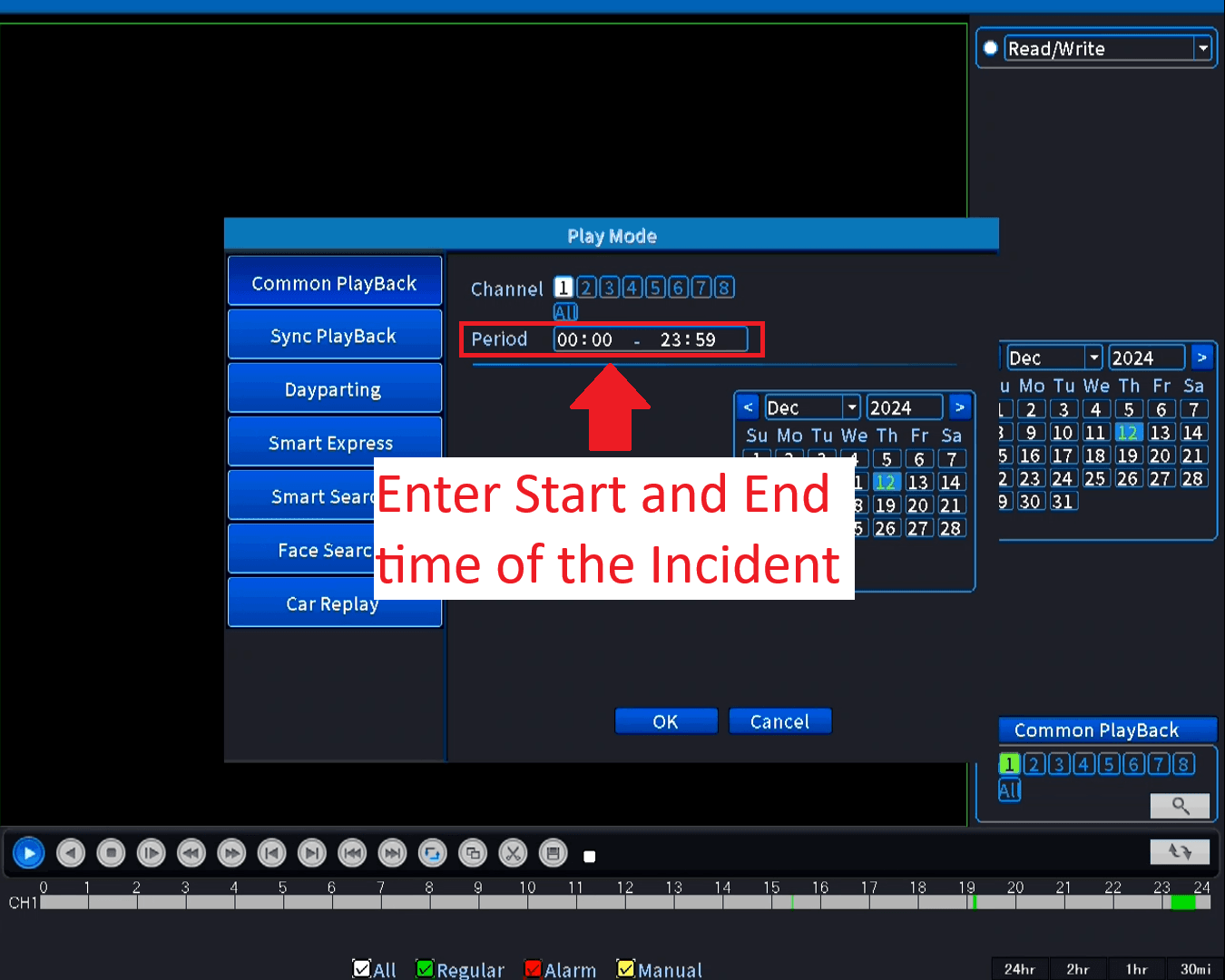

Put in the time Period
-
If you know the exact time of the incident, enter the start time and end time for more accurate playback.
Note:
The playback may start up to 5 minutes before the entered start time.

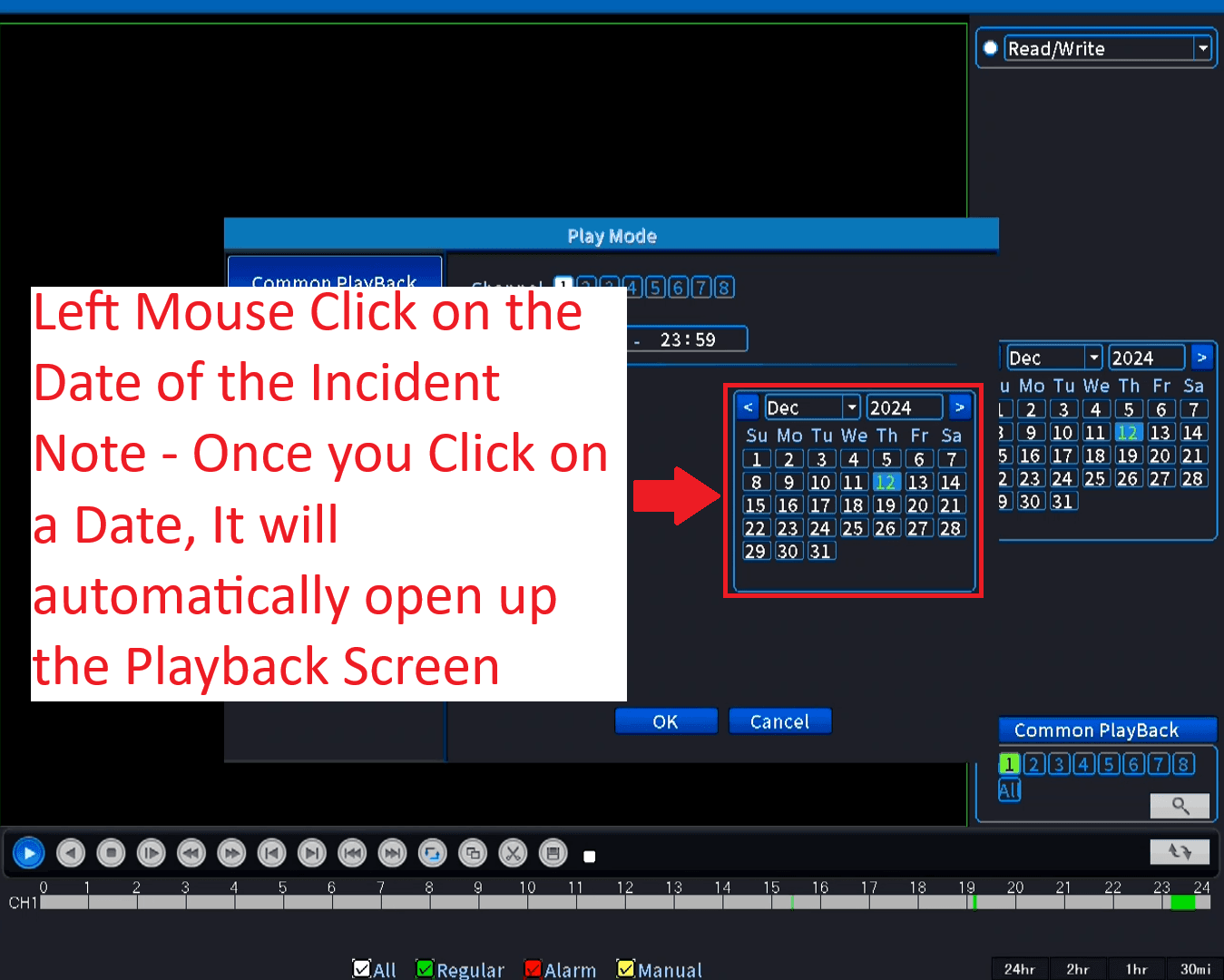

Select Date of the Incident
-
Left Mouse Click on the Date of the Incident.
Note:
The playback window will automatically open when you select a date.

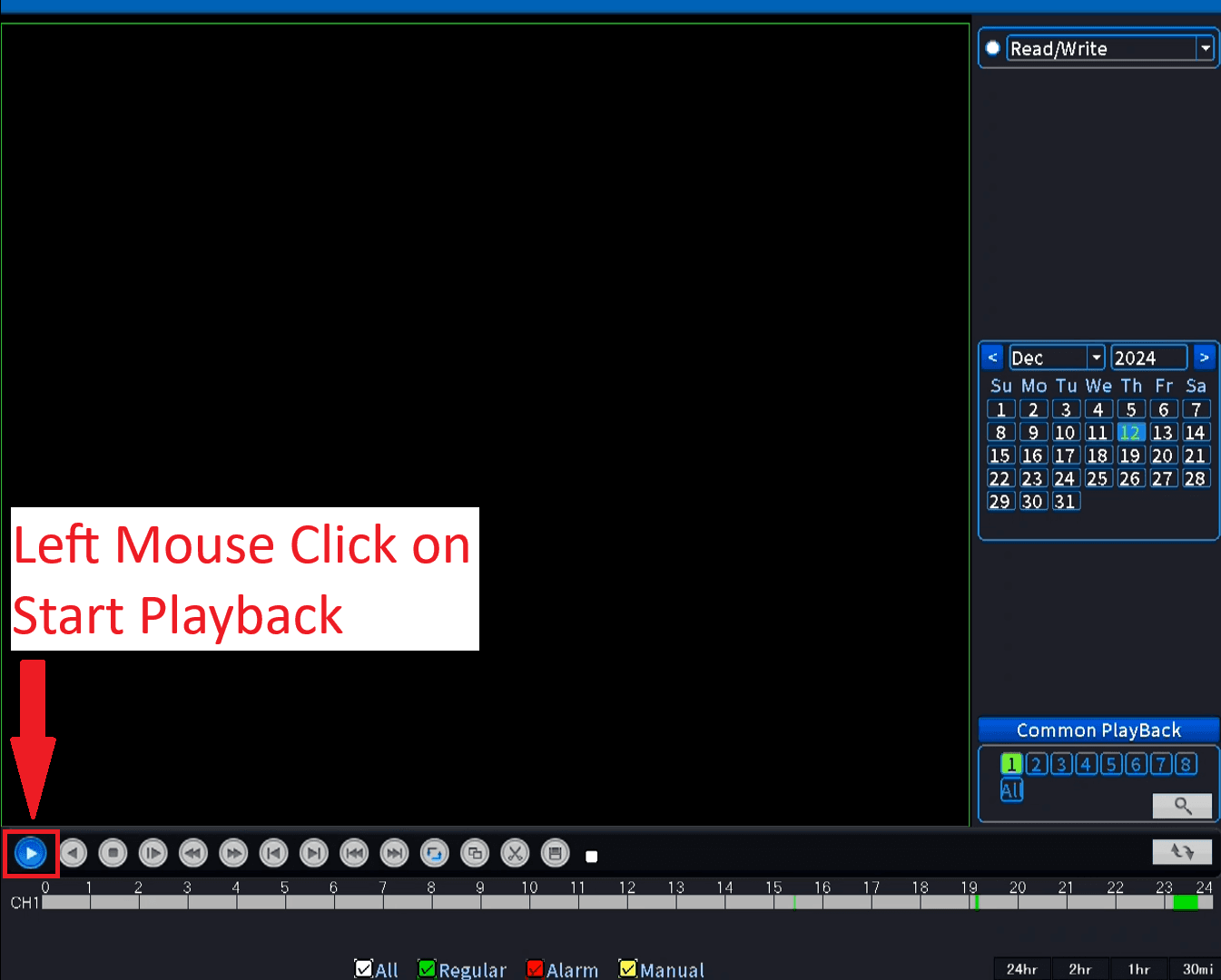

Start Playback
-
Left Mouse Click on Start playback
