Default Recording Schedule
- Out of the Box the NVR is set to record daily, 24 Hours.
- Continuous Recording is represented by a Red Block
Recording Blocks Overview
The NVR allows you to configure different recording types for each hour of the day. The table has 23 columns and 3 rows, where each column corresponds to one hour of the day (0-23). You can set different types of recordings for each hour and mix them as needed.
Columns (0-23): Each column represents one hour of the day. Column 0 is midnight (12:00 AM), column 1 is 1:00 AM, and so on until column 23, which is 11:00 PM.
Rows:
- Row 1: Continuous recording
- Red Block: Indicates that continuous recording is enabled for that hour.
- Row 2: Motion Detection recording
- Green Block: Indicates that motion detection recording is enabled for that hour.
- Row 3: Alarm recording
- Yellow Block: Indicates that alarm recording is enabled for that hour.
- Row 1: Continuous recording
You can mix and match these recording types for each hour. For example, you could set continuous recording from 8:00 AM to 12:00 PM, motion detection from 12:00 PM to 4:00 PM, and alarm recording from 4:00 PM to 8:00 PM.
Reset Button
- If you have made incorrect changes, you can use the Reset Button to clear all the blocks.
Demo – Setting Recording Schedule to Record between 07:00 and 18:00 for Sunday for Camera 1

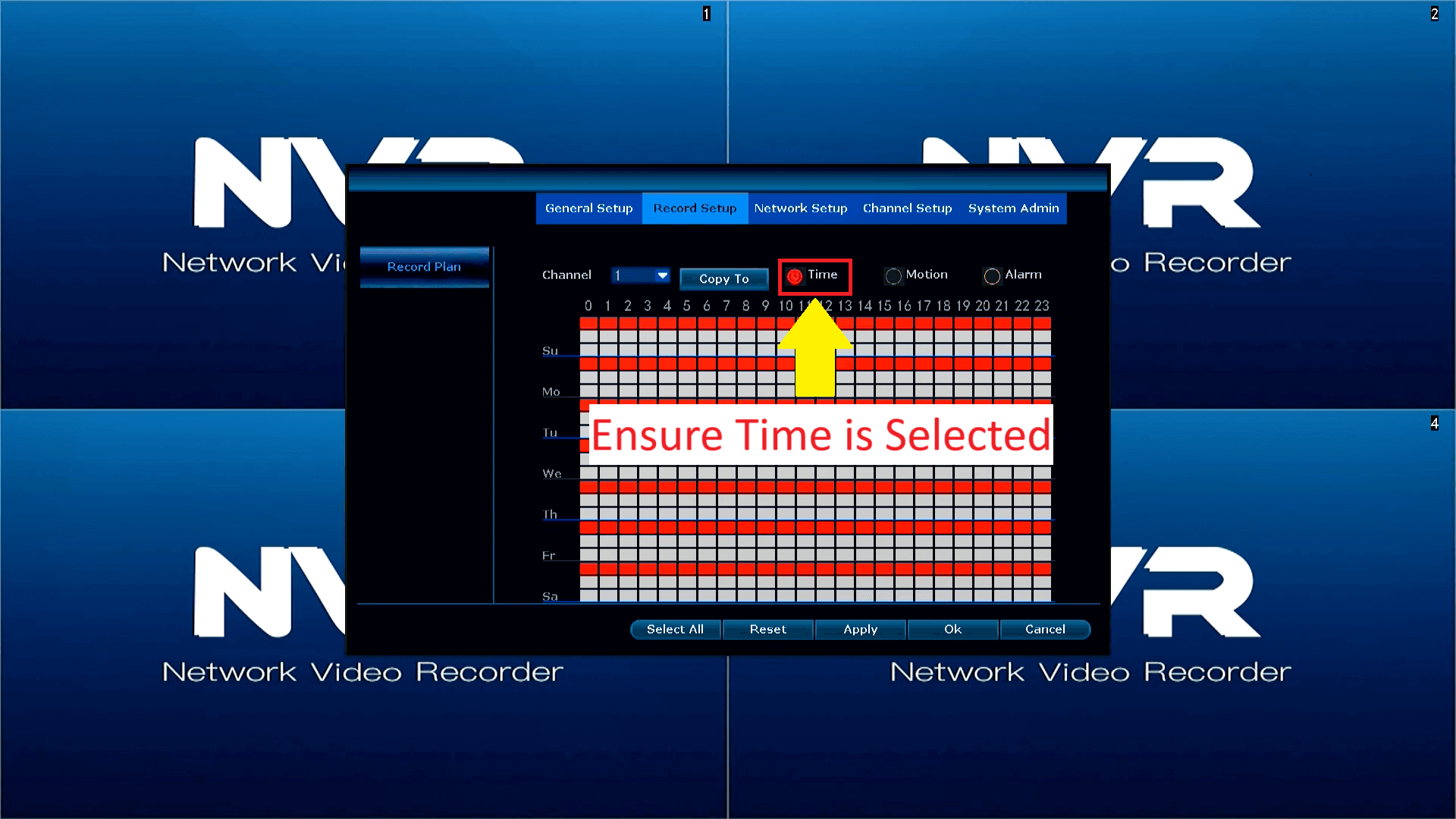

- Ensure Time is Selected.
- If it isn’t Selected, Left Mouse Click to Select it

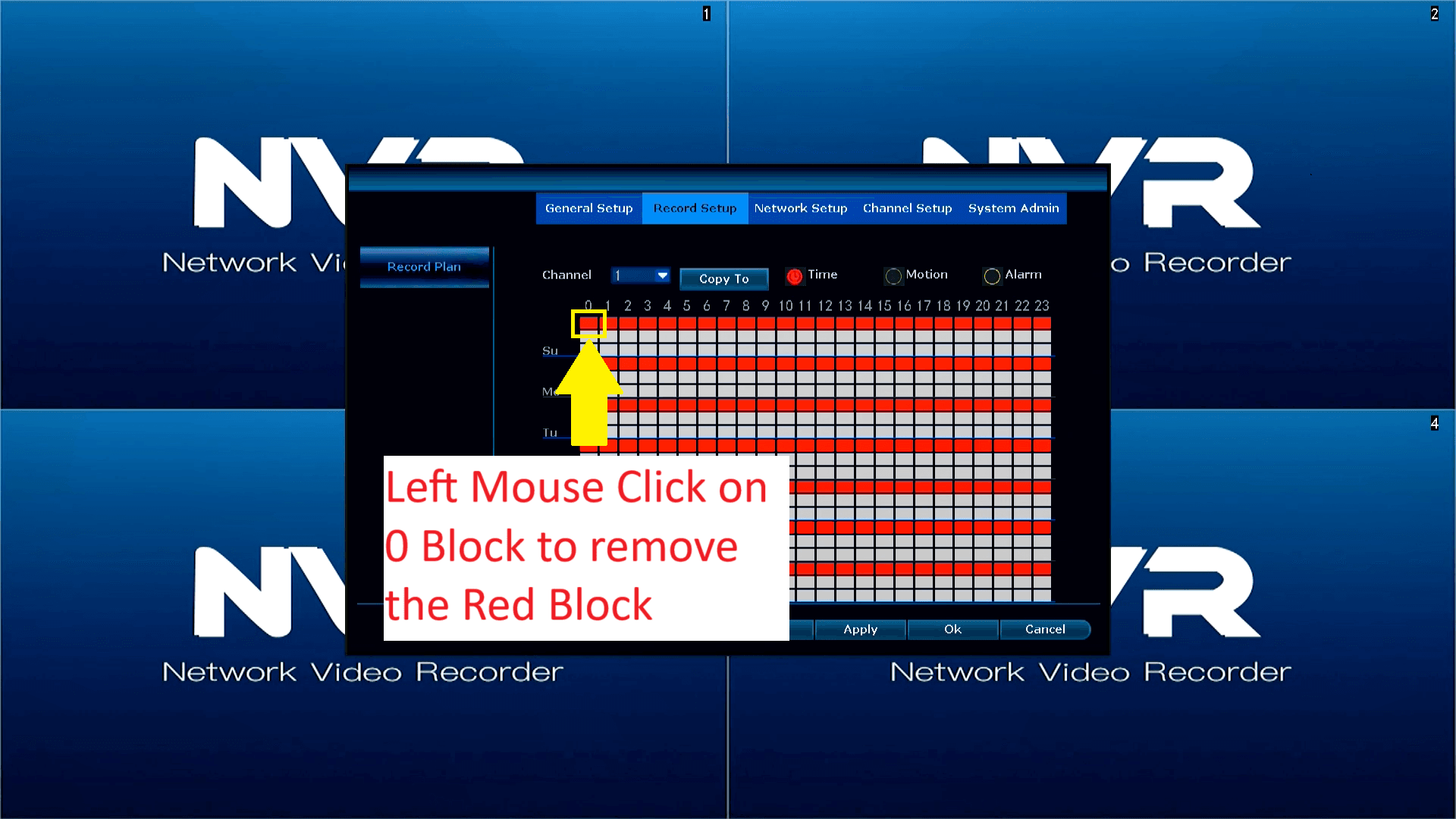

Remove Red Recording Block at time 00:00 – 01:00 for Sunday
- Left Mouse Click on the Red block located at the time 0 (00:00 – 01:00)
- See next step to see the red block removed

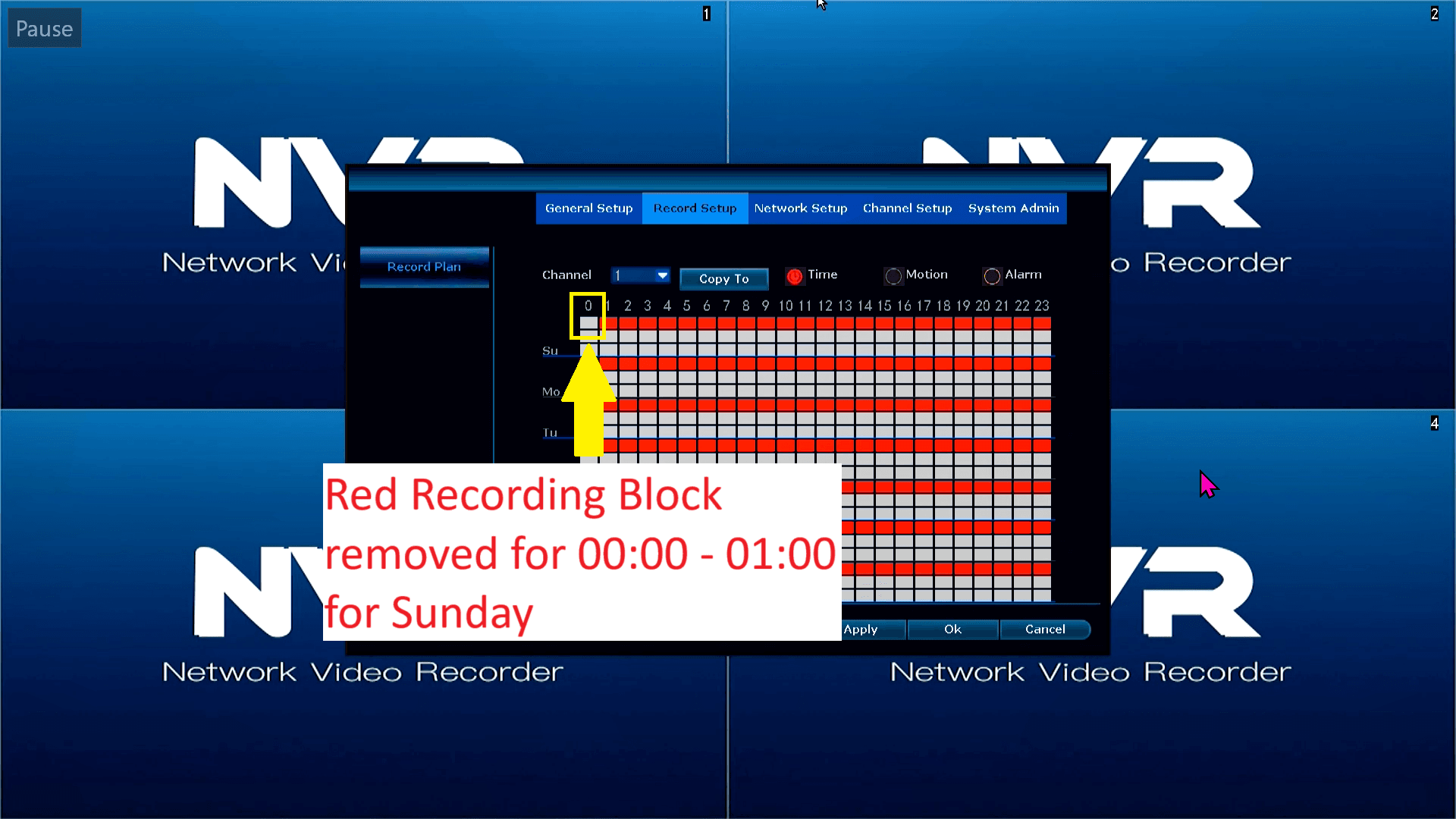

Red Recording Block Removed
- Red Recording block has now been removed, meaning it will not record between 00:00 – 01:00 on Sunday.

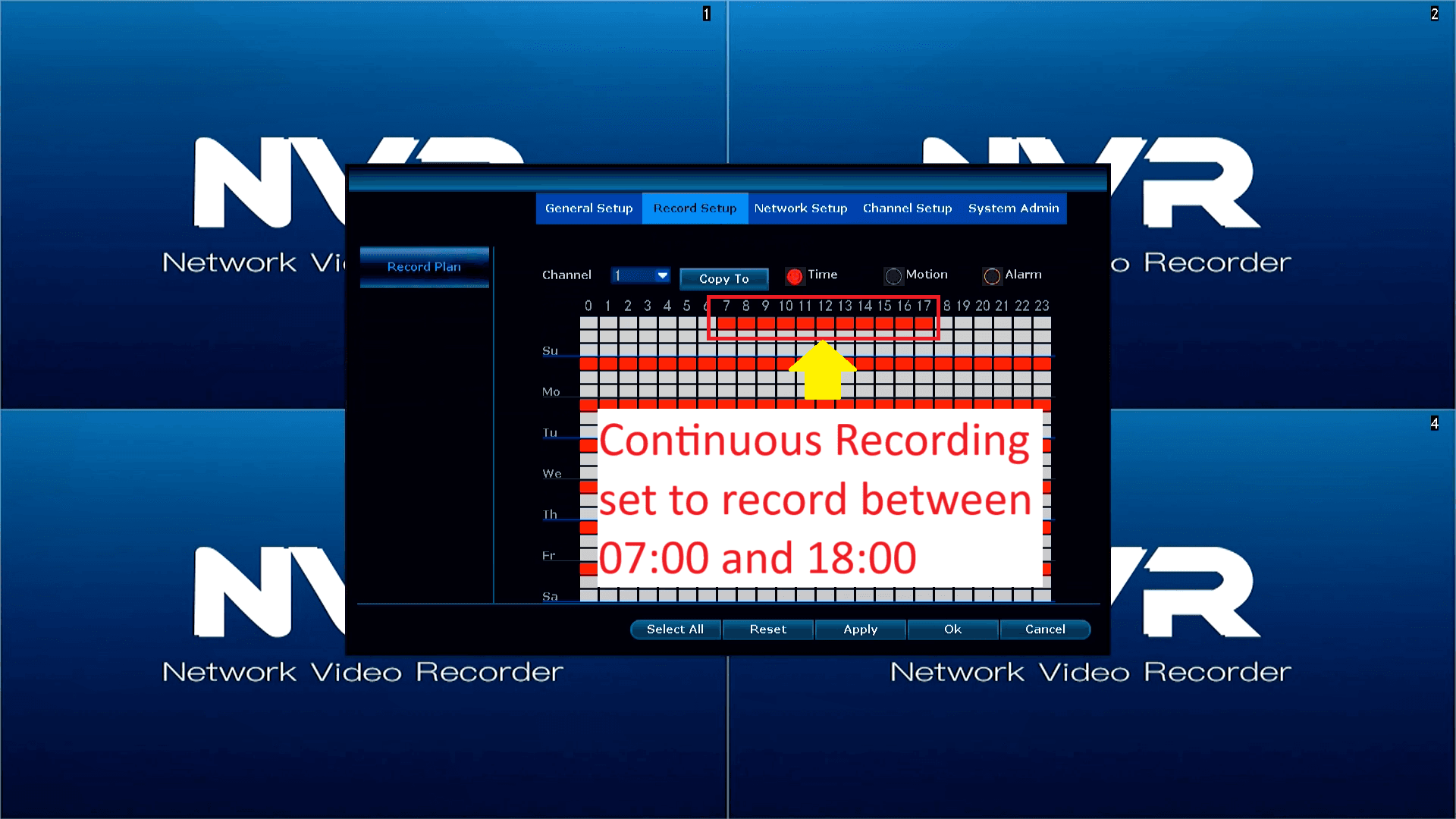

Remove all other Red Blocks so that the Red Recording Blocks are set to record between 07:00 and 18:00

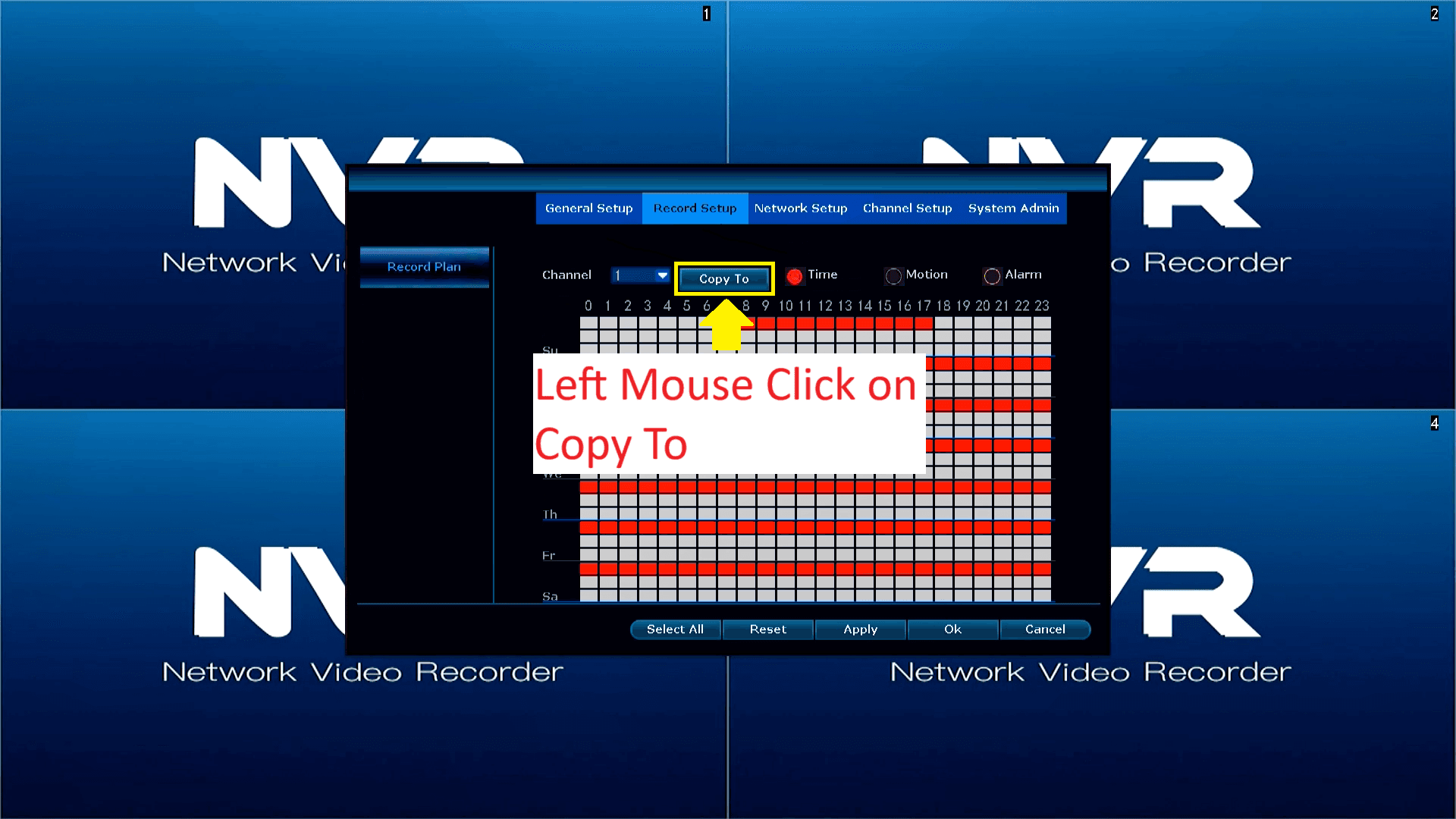

Copy Recording Schedule to other Cameras
- Left Mouse Click on Copy to

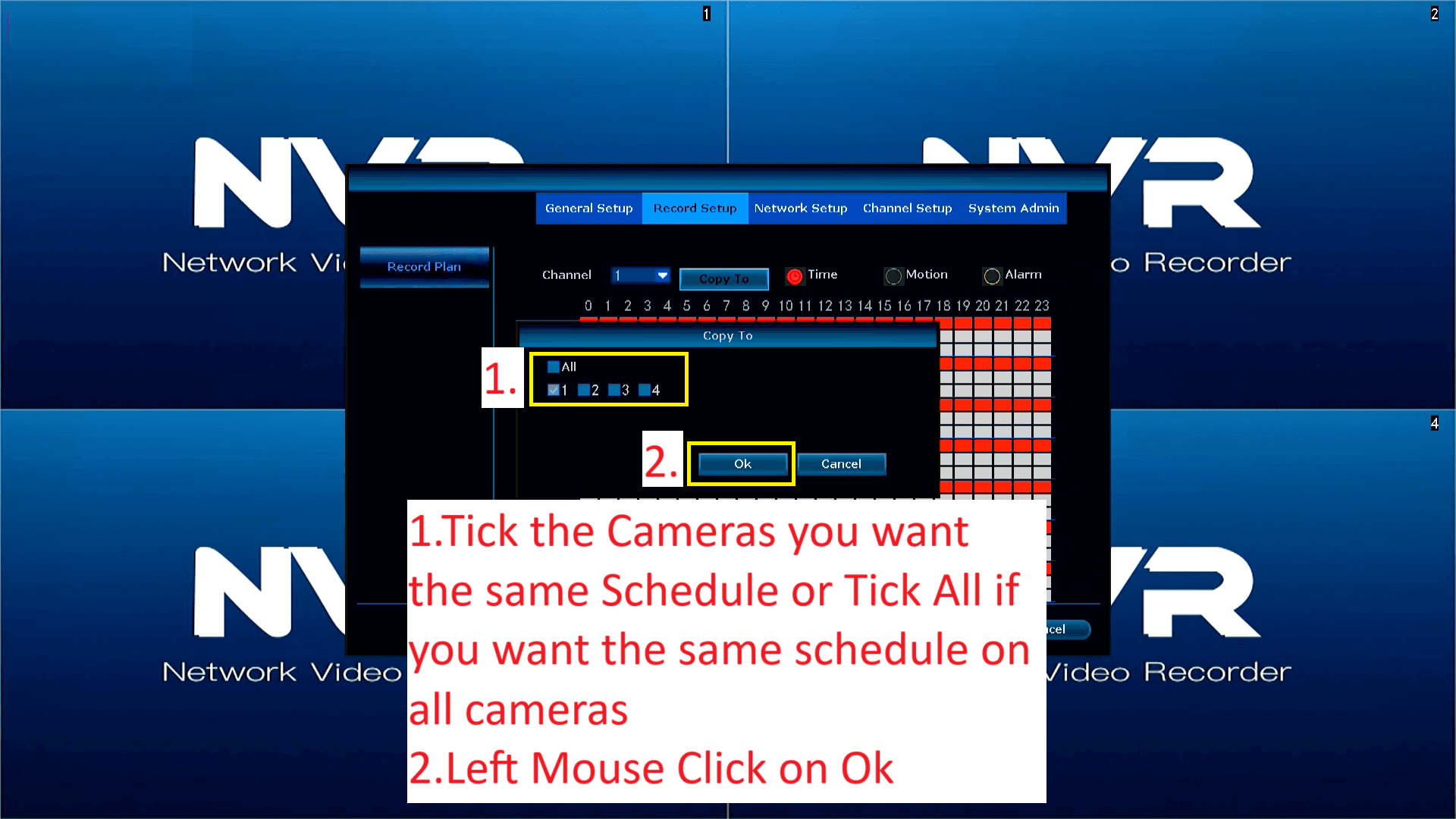

Select Cameras you want the same Recording Schedule applied to
- Tick All if you want the same recording schedule for the other Cameras
- Tick individual cameras if you want to apply Recording Schedule to specific cameras
- Left Mouse Click on Ok
Save your Recording Schedule
- Left Mouse Click on Apply
- Left Mouse Click on Ok
Customize your Recording Schedule
- Using the same process above, Customize the Day and Time Recording to your own requirements.
- We recommend keeping it on the Default Recording schedule i.e. Recording everyday, 24 hours.
Final Tips for Setting Up Your NVR Recording Schedule
-
Verify Your Recordings with Playback:
After setting up your recording schedule, always double-check by playing back recorded footage. This ensures that your NVR is capturing video according to your schedule. -
Ensure Correct Date and Time Settings:
It’s crucial to make sure that the date and time on your NVR are accurately set. Incorrect time settings can lead to missed recordings or incorrect timestamps on your footage. -
Maintain Your NVR’s Battery:
If your NVR has an onboard battery, be sure to replace it regularly. A depleted battery can cause issues with timekeeping and recording schedules. -
Enable Internet Time Synchronization (If Available):
If your NVR supports it, enable Internet Time Sync to automatically update the system’s time. This helps ensure precise recording times and prevents errors related to manual time settings.
By following these simple tips, you can optimize your NVR’s performance and ensure your recordings are always accurate and reliable.
